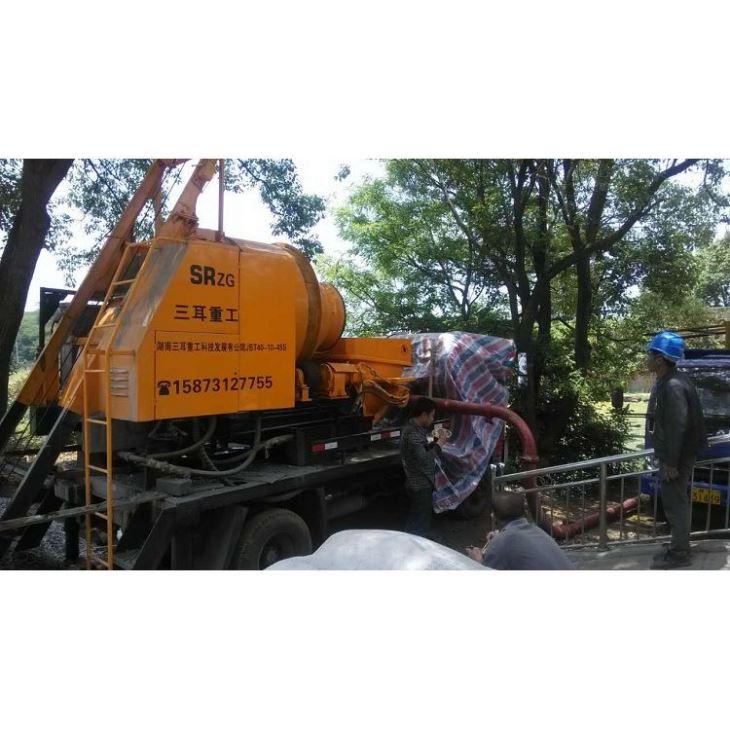

Small Concrete Mixer With Pump

Our small concrete mixer with a pump is a compact piece of construction equipment that combines the functions of mixing concrete and pumping it to a desired location. It is ideal for small- to medium-scale construction projects, offering a practical and efficient solution for sites with limited space or for contractors who need a portable and cost-effective machine.



Key Features:

Compact Size:

These machines are designed to be smaller than traditional mixer pump trucks, making them suitable for use in confined spaces or small job sites like residential buildings, driveways, and small commercial projects.

Mixer and Pump Combined:

Mixer: The unit has a small concrete mixer that blends cement, water, and aggregates into ready-mix concrete.

Pump: Once mixed, the concrete is pumped directly to the desired location using either a piston or hydraulic system. It can pump concrete over horizontal and vertical distances, though it's more limited compared to larger pumps.

Portability:

Small concrete mixer pumps are often skid-mounted or wheeled, making them easy to transport and set up on different job sites. Some models may also be trailer-mounted, allowing them to be towed by a truck or pickup.



how many ounces is a mini concrete mixer

The weight or volume of a "mini concrete mixer" is typically measured by its drum capacity (how much concrete it can mix at once), not directly in ounces, but in cubic feet or liters. However, if you want to convert the concrete capacity into ounces, here's a rough guide:

Common Mini Concrete Mixer Capacities:
Small Concrete Mixers typically have drum capacities ranging from 1 to 3 cubic feet.
Conversion to Ounces:
1 cubic foot of concrete ≈ 7.48 gallons.
1 gallon = 128 ounces.
Example:
1 cubic foot of concrete = 7.48 gallons × 128 ounces = 956.16 ounces.
If your mini concrete mixer has a drum capacity of 2 cubic feet:

2 cubic feet × 956.16 ounces = 1,912.32 ounces.
Approximate Capacities:
1 cubic foot = 956 ounces.
2 cubic feet = 1,912 ounces.
3 cubic feet = 2,868 ounces.



Product parameter(specification)



TECHNICAL PARAMETERS					MODEL: JBT40-10-65FS
Max theoretic output					45m³/h
Max theoretic pumping pressure					10-13Mpa
Hydraulic system					Three pump & three circuit opening
Main oil pump displacement					140ml/r(kawasaki)
Hydraulic system pressure					30MPa
Power supply					Diesel engine
Engine power					YuChai 62KW
Distribution valve type					S pipe valve
Max aggregate size					40mm
Mix Hopper Volume					500L
Feeding height					1450mm
Max theoretic delivery vertical distance					100m
Max theoretic delivery horizontal distance					300m
The radiator cooling type					Air cooling system
Hydraulic pump type					Ram pump
Outer dimensions(L*W*H)					5200×2200×3100mm
Total weight					5300 kg



Product application:





Product details:





Product work video:





Deliver,shipping:

Packaging details---nude package,container or roro,or as your request

Port---changsha



Product advantage:

This product adopts double pump and double circuit open hydraulic system, which makes the system simple, the component life is extended, the reliability is higher, and easy to know and remove faults.

Wear parts such as glasses plates and cutting rings have long service life after a continuous technical research.

The outstanding features of the electronic control system: advanced technology, simple and high reliability.

The S valve has good rigidity and good manufacturability, which avoids the deformation of the hopper and the broken shaft of the S valve when the high-grade conveying of similar products.

Simple maintenance and optimized design.



Company advantage:

Covers an area of 10000 square meters,high ovested R&D cost with 2 million each year.

Strict quality control systerm from Iqc to Qa,we perform strictly according to the ISO9001 quality systerm in the whole process.

Rich experience of OEM and ODM,response within 24 hours,we could customize products according to your requirements.

Strong engineer team with rich experience of machine,service worldwide clients with high-quality products.
