The series of products independently developed by Saner Heavy Industry not only have the excellent characteristics of low cost, high safety, convenient construction, independent operation of the whole machine, convenient movement, etc., but also can be developed, designed and manufactured according to the needs of customers. The related auxiliary equipment, from raw materials to construction, is in place, making the construction more convenient, time-saving, and labor-saving. Saner's soil spraying machine is deeply loved by customers, get the majority of users praise, three ear guest soil spraying machine-a good helper of China's greening.

Send Inquiry

Product Introduction

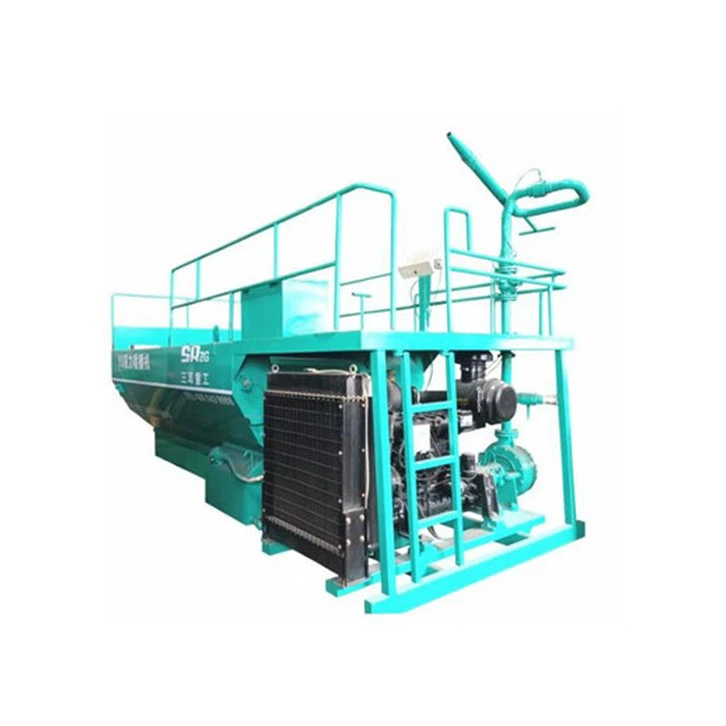

Soil Spraying Machine For Green is a vehicle-mounted hydraulic spraying machine designed for spraying soil slurry, planting substrates, and ecological greening materials. It features high-pressure conveying, continuous mixing, and long-distance spraying for slope protection, mine restoration, highway greening, and landscaping projects.

Product Parameters

MODEL: Y8/YP08-22-132RS
Max theoretic output				80m³/h
Outlet pressure				22Mpa
Material(flow passage components)				Wear-resistant high-strength steel
Transmission mode				Magnetic drive
Mixing method				Horizontal axis oblique slurry pressure mixing
Mixing direction				Clockwise/counterclockwise
Power supply				Diesel engine
Power				247KW
Motor speed				2600r/min
Mix shaft rotation speed				≤100r/min
Hopper volume				800L
Max aggregate size				25mm
Sprinkler head form				single
Max delivery vertical distance				50m
Max delivery slope distance				70m
Lubricating system				Lubricating pump, progressive oil separator,Manual operation
Maximum solid content				Volume ratio 30% Weight ratio 50%
Walking mode				Vehicle-mounted
Outer dimensions(LWH)				5280×2400×2400mm
Total weight				3350 kg

Key Features

80 m³/h theoretical output enables efficient material spraying for large-scale ecological restoration and greening projects.
22 MPa outlet pressure provides stable long-distance conveying with up to 50 m vertical and 70 m slope delivery.
Horizontal-axis pressure mixing system ensures uniform slurry mixing, reducing material segregation during spraying.
Wear-resistant high-strength steel flow components improve durability when handling abrasive materials.
247 kW diesel engine and vehicle-mounted design support independent operation at remote construction sites without external power.

Typical Applications

Highway Slope Greening – Sprays vegetation substrate and soil mixtures onto road embankments for erosion control and vegetation establishment.

Mine Ecological Restoration – Applies soil slurry and planting media to disturbed mining slopes to support ecological rehabilitation.

Railway Embankment Protection – Covers exposed slopes with planting materials to reduce soil erosion and improve landscape stability.

Landscaping Projects – Delivers fertile soil mixtures for large-area park, garden, and municipal greening construction.

Water Conservancy & Riverbank Protection – Sprays ecological substrates on embankments to enhance vegetation coverage and stabilize soil.

Soil spraying machine for green 1

Soil spraying machine for green 4

OEM & Customization

Customization Category	Available Options
Machine Configuration	Output capacity, outlet pressure, diesel engine brand, spraying distance, hopper size, mixing system configuration, lubrication system, vehicle chassis type
Spraying System	Single or multiple spray nozzles, nozzle diameter, spray angle, hose length, delivery pipeline configuration
Power System	Diesel engine specifications, emission standards, fuel tank capacity, cooling system
Hydraulic System	Hydraulic pump brand, control valves, pressure adjustment, automatic lubrication options
Appearance	Machine color, OEM logo, company nameplate, safety labels, reflective markings
Control System	Manual control, wireless remote control, operation panel language, instrument display
Accessories	Spray hoses, nozzles, hose clamps, spare wear parts, tool kit, maintenance package

Manufacturing & Quality Assurance

Manufacturing Process

Raw material inspection

CNC cutting and machining

Hopper and frame welding

Pump assembly

Hydraulic system installation

Mixing system assembly

Diesel engine installation

Electrical wiring and control integration

Surface treatment and painting

Final machine assembly

Quality Control

Material composition verification

Weld appearance and dimensional inspection

Hydraulic pressure testing

Pump output and pressure testing

Mixing system operational testing

Delivery distance verification

Leakage inspection

Engine performance testing

Continuous trial operation

Final pre-shipment inspection

FAQ

1. What materials can this soil spraying machine handle?

It is designed for soil slurry, hydroseeding mixtures, planting substrates, organic compost slurry, ecological restoration materials, and other pumpable mixtures containing aggregates up to 25 mm.

2. How does the mixing system prevent material segregation?

A horizontal-axis oblique pressure mixing system continuously agitates the material before pumping, helping maintain a uniform slurry during operation.

3. What routine maintenance is recommended?

Daily maintenance includes checking hydraulic oil, lubricating designated points, inspecting hoses and seals, cleaning the hopper and pipelines after use, and examining wear components regularly.

4. Are spare parts available for long-term maintenance?

Yes. Common spare parts such as wear plates, seals, spray nozzles, hoses, hydraulic components, bearings, and lubrication parts can be supplied with the machine or ordered separately.

5. What documents are supplied with the machine?

The standard package can include the operation manual, maintenance manual, spare parts list, packing list, commercial invoice, and inspection documents. Additional export documents are available upon request.

6. Can customers inspect the machine before shipment?

Yes. Factory inspection, on-site acceptance, third-party inspection, and video inspection before shipment are all available upon request.

7. What are the packaging and shipping methods?

The machine is securely packed using steel-frame reinforced export packaging with protective wrapping and moisture-proof protection. Ocean freight is the primary shipping method, while railway and truck transportation are available for selected destinations.

8. What payment terms do you accept?

Our standard payment terms are 30% T/T deposit with the 70% balance before shipment. L/C at sight, Western Union, and Trade Assurance are also available upon mutual agreement.
