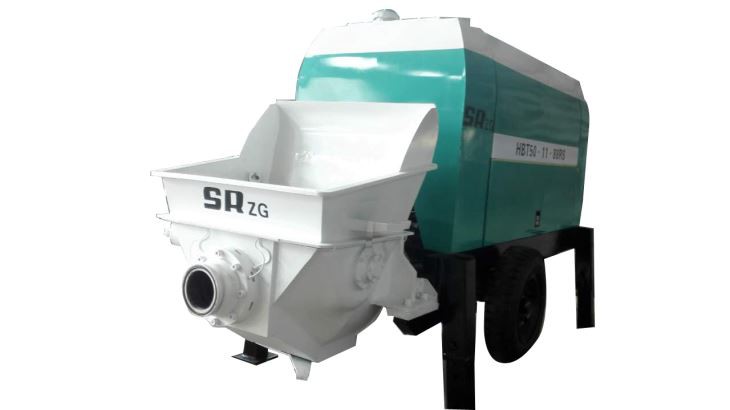

Fixed Concrete Pump
Fixed Concrete Pump main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes.
Product advantage:
1.The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
2.Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.
3.The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Product parameter(specification):
| MODEL: HBT80-16-110S/162RS | |||||
| Max theoretic output | 80m³/h | ||||
| Max concrete pumping pressure | 16Mpa | ||||
| High and low valtage switchover | Yes | ||||
| Hydraulic system | Double pump & double circuit opening | ||||
| Main oil pump discharge | 260ml/r(kawasaki) | ||||
| Hydraulic system pressure | 32MPa | ||||
| Power supply | Electric motor | Diesel motor | |||
| Voltage | 380V | / | |||
| Motor power | 110KW | 162KW | |||
| Motor speed | 1475r/min | ||||
| Distribution valve type | S pipe valve | ||||
| Concrete conveying cylinder bore/stroke | Ф200/1862mm | ||||
| Oil cylinder bore/stroke | Ф140/1650mm | ||||
| Max aggregate size | 40mm | ||||
| Hopper Volume | 0.80m³ | ||||
| Feeding height | 1450mm | ||||
| Max delivery vertical distance | 150m | ||||
| Max delivery horizontal distance | 500m | ||||
| Concrete slump | 160-230mm | ||||
| Hydraulic oil tank volume | 420L | ||||
| The radiator cooling type | Air cooling system | ||||
| Hydraulic pump type | Ram pump | ||||
| Outer dimensions(L*W*H) | 6450*1900*2330mm | ||||
| Total weight | 6100kg | ||||

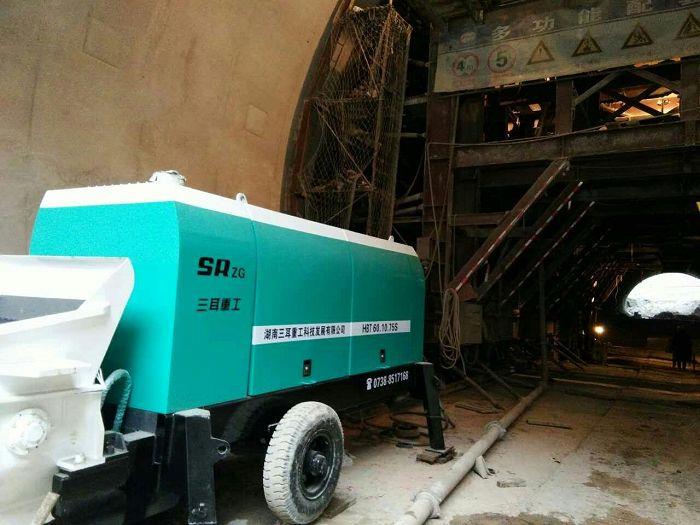

Product application:
Product details:

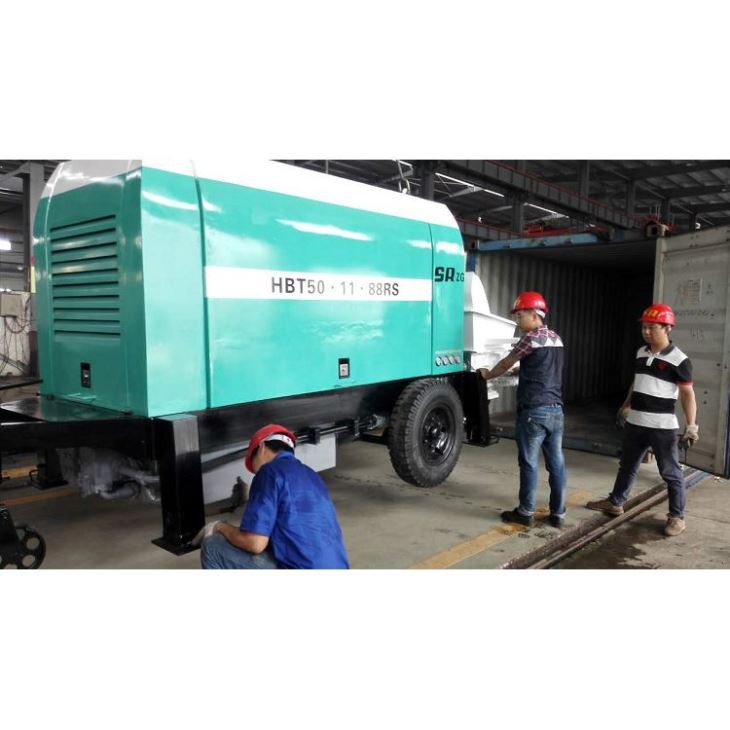

Deliver,shipping:
Packaging details---nude package,container or roro,or as your request
Port---changsha
Our service:
Spare parts---Saner is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services,wherever you are.please submit your spare parts request to us,and list product name,model,equipment serial number,description of required parts.we guarantee that your request will be handled quickly and appropreately.
FAQ:
Q: Are you manufacture ?
A: Yes, we are manufacture of construction machinery with six years experience ,the main product include :concrete mixer pump , concrete pump, spraying pump and wet mortar pump etc.
Q: How long is your product warranty ?
A: 12 months is available from the date of shipment.
Q: How do you guarantee your product quality ?
A: We have our professional testing department, after finishing the machine ,we'll test the machine for twice before shipment .
