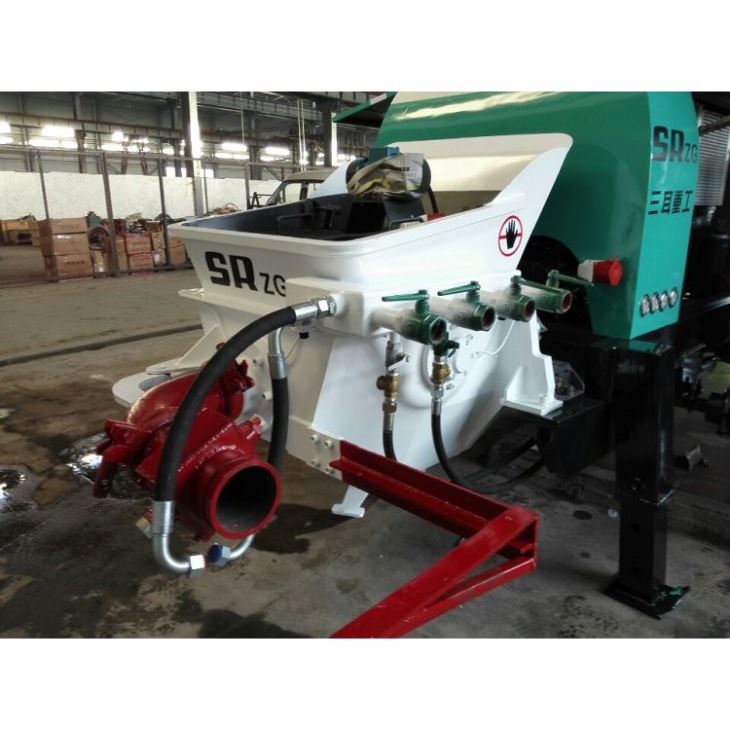

Concrete Spraying Machine

Our Concrete Spraying Machine is a kind of wet-spray concrete equipment developed on the basis of dry material and tidal concrete spraying technology.It has been widely used in the shotcrete construction because it has obvious advantages such as less dust and high strength of shotcrete.It is widely used in builing,railway,highway,hydropower,mining and other engineering foundations, slopes,tunnels,bridges,mines.

Product advantage

The domestic famous brand pneumatic metering pump is accurate in measurement, and the atomizing jet and the nozzle stream are mixed to make the accelerator and concrete mix evenly.

Reduce the dust concentration outside the machine and nozzle,eliminating the harm to workers' health.

The rebound is low.With wet spraying technology, the rebound rate can be reduced to less than 10%, which effectively saves costs.

It can greatly improve the quality of the shotcrete and improve the homogeneity of the concrete, because the water-cement ratio is easy to control, the concrete has high strength and high jet compaction.

Cooling hydraulic oil by air cooling is simple and environmentally friendly.

A multi-purpose machine, can be used as a wet spray machine, can also be used as a concrete pump.



Product parameter(specification)

PRODUCT DETAIL
TECHNICAL PARAMETERS					MODEL: SRHTP25-10-45S/A6
Jet type					Double jet
Max theoretic output					25m³/h
Max theoretic pumping pressure					10Mpa
Hydraulic system					Double pump & double circuit opening
Main oil pump displacement					112ml/r(kawasaki)
Hydraulic system pressure					26MPa
Power supply					Electric motor
Voltage					380V
Engine power					45KW
Distribution valve type					S pipe valve
conveying cylinder bore/stroke					Ф160/1000mm
Accelerator pump diplacement &pressure					270l/h×Mpa
Max aggregate size					≤16mm
Mix Hopper Volume					300-500L
Feeding height					1350mm
Max theoretic delivery vertical distance					25m
Max theoretic delivery horizontal distance					35m
Operation style					wired or wireless remote control
The radiator cooling type					Air cooling system
Hydraulic pump type					Ram pump
Outer dimensions(L*W*H)					4700×1850×1900mm
Total weight					3600 kg





Product Application



Tunnel Construction:

Concrete spraying machines are commonly used to line tunnels with shotcrete for immediate support and reinforcement during tunnel construction.

Foundation Construction:

For applying concrete to foundations, particularly in areas where traditional pouring methods are difficult.

Swimming Pools:

Shotcrete is the preferred method for applying concrete to the walls and floors of swimming pools.

Slope Stabilization:

Used for spraying concrete on steep slopes to prevent erosion and improve stability.

Structural Repairs:

Spraying concrete is a common method for repairing and restoring deteriorating concrete surfaces like bridges, walls, and floors.

Decorative Concrete:

Plaster and stucco sprayers are used for decorative finishes on walls, facades, and outdoor surfaces.

Fireproofing:

Shotcrete machines are used to apply fire-resistant concrete coatings to structural elements to meet safety standards.





How it Work ?

Material Preparation:

Concrete is mixed (either dry or wet) and loaded into the machine's hopper or drum. If it's a dry-mix machine, water is added at the nozzle.

Spraying Process:

In dry-mix systems, compressed air blows the dry mix through the hose, where water is injected before hitting the surface.

In wet-mix systems, pre-mixed concrete is pumped through a hose to the nozzle where it's sprayed directly onto the surface with air pressure.

Surface Application:

The nozzle operator directs the spray onto the surface, ensuring that the concrete is applied evenly and consistently.

Curing and Finishing:

After the concrete is sprayed, it is left to cure according to the material specifications. In some cases, additional finishing may be done to achieve a smooth or textured surface.



Our service

The digital commitment system, clear standards of service and payment basis, value chain covering the whole product life and engineers for global service ensure

Warranty: 12months warranty since cargo left factory

We can send technician oversea to supply technician support.



Q: Are you manufacture ?

A: Yes, we are manufacture of construction machinery with six years experience ,the main product include :concrete mixer pump , concrete pump, spraying pump and wet mortar pump etc.



Q: How do you guarantee your product quality ?

A: We have our professional testing department, after finishing the machine ,we'll test the machine for twice before shipment .



Q: What is your main product?

A: Trailer concrete pumps/Concrete mixer pump/Truck concrete pump/Truck concrete pump boom/Wet shotcrete machine/ Concrete placing boom/Concrete mixer/concrete mixer truck/concrete mixing plant

Mortar plastering machine on wall and other construction machines



Q: Which shotcrete machine should we choose?

A: To recommend the most suitable model, please tell us:

- Material: dry/damp mixture, or ready mixed wet mixture

- Capacity: 10m³/h,20m³/h,30m³/h,40m³/h

- Delivery distance(horizontally/vertically)

- Driven type: electric motor, diesel engine



how many Types we can manufacturing ?

Dry-Mix Shotcrete Machines:

In a dry-mix system, dry cement is mixed with sand and aggregates in the hopper. The mixture is then sprayed with air pressure, and water is added at the nozzle before it hits the surface.

Allows for quick set-up and is ideal for applications where the mix can be adjusted on-site.



Wet-Mix Shotcrete Machines:

In a wet-mix system, pre-mixed concrete (with water already added) is pumped through a hose and sprayed under high pressure. The wet concrete is applied directly onto the surface.

Provides a more consistent and controlled application, with less dust and material wastage.



Plaster Sprayers:

These machines are designed specifically for spraying plaster or mortar onto surfaces, often used for finishing and decorative concrete work.

Offers smooth and uniform finishes for walls and ceilings.



Rotor-Stator Sprayers:

These machines use a rotor-stator mechanism that helps mix the materials evenly as they are sprayed. The mechanism ensures a constant, high-pressure output.

Provides a steady and consistent material flow, ensuring efficient application.
