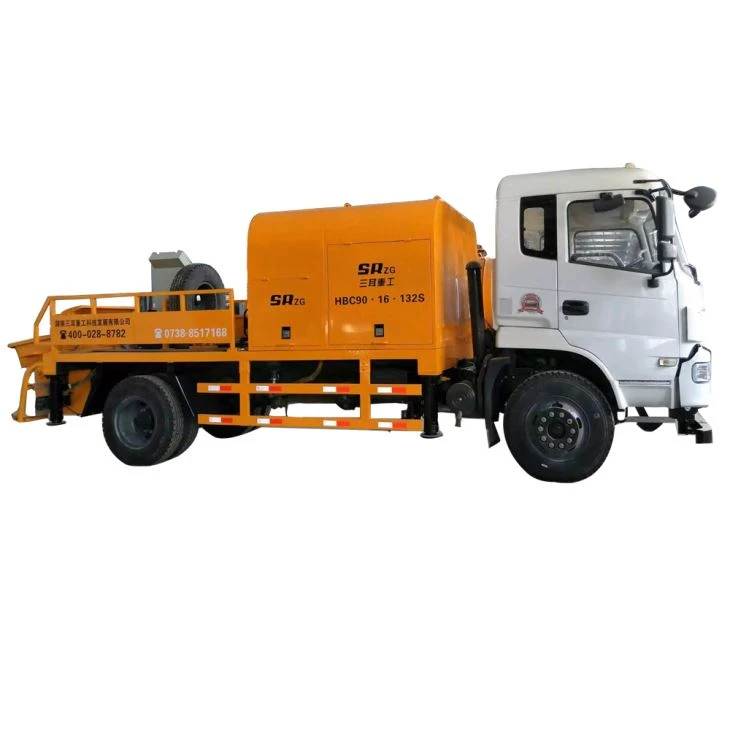

Concrete pump truck was modified on the chassis of the truck. It is equipped with a motion and power transmission, a pumping and stirring device, a cloth device and other auxiliary devices on the chassis. The power of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the power transfer box, and the hydraulic pump pushes the piston to drive the concrete pump to work. The concrete is then transported to a certain height and distance using the boom and the conveying pipe on the pump truck.



Product parameter(specification)



TECHNICAL PARAMETERS					MODEL: HBC60-12-90S/130RS
Pumping System
Max theoretic output					68m³/h
Max theoretic pumping pressure					12Mpa
Hydraulic system					Double pump & Double circuit opening
Main oil pump displacement					190ml/r(kawasaki)
Hydraulic system pressure					32MPa
Power supply					Electric engine		Diesel engine
Voltage					380V		/
Engine power					90KW		130KW
Distribution valve type					S pipe valve
conveying cylinder bore/stroke					Ф230/1565mm
Max aggregate size					40mm
Mix Hopper Volume					800L
Feeding height					≤1450mm
Max theoretic delivery vertical distance					115m
Max theoretic delivery horizontal distance					300m
The radiator cooling type					Air cooling system
Hydraulic pump type					Ram pump
Concrete slump					160-230mm
Chassis Parameters
Chassis manufacturer					DongFeng/Foton
Engine model					YuCai
Fuel type					Diesel
Emission standard					National V
Tyre specification					7.00R16
Tyre distance (front/back)					1584/1540MM
Wheelbase					3360
Axle weight					2.64T/4.72T
Axle quantity					2
Rated power					66.2KW
Rated speed					60KM/H
Gradient					20°
Turnning Radius					7M
Whole Machine
Outer dimensions(L*W*H)					7500×2150×2400mm
Total weight					7800kg



Product application:



Product details:



Here's a detailed look at trucked concrete pumps:



Components of a Trucked Concrete Pump

Truck Chassis:

Provides the base and mobility for the concrete pump.

Can be driven to various job sites, enhancing flexibility and convenience.

Boom Arm:

An extendable and articulating arm that allows for precise placement of concrete.

Boom lengths vary, typically ranging from 20 meters to over 70 meters.

Concrete Pump:

Hydraulic system that moves concrete from the hopper through the pipeline and out through the boom.

High-capacity pumps can deliver large volumes of concrete quickly.

Hopper:

The receptacle where concrete is loaded before being pumped.

Equipped with agitators to keep the concrete mix consistent and prevent segregation.

Control System:

Allows operators to manage the pump and boom movements.

Often includes remote control capabilities for enhanced precision and safety.

Types of Trucked Concrete Pumps

Boom Pumps:

Feature a multi-section boom that can be extended and maneuvered to reach various locations.

Ideal for high-rise buildings, bridges, and other large-scale projects.

Line Pumps:

Use a series of connected pipes and hoses to deliver concrete.

Suitable for smaller projects or where a boom pump is impractical.



Advantages of Trucked Concrete Pumps

Efficiency:

Can place concrete much faster than traditional methods, reducing project timelines.

Continuous flow of concrete minimizes delays and interruptions.

Precision:

Boom allows for accurate placement, even in hard-to-reach areas.

Reduces waste and ensures consistent quality.

Versatility:

Suitable for a wide range of projects, from residential to large infrastructure.

Can access difficult or confined spaces with ease.

Reduced Labor Costs:

Minimizes the need for manual transportation and placement of concrete.

Workers can focus on other tasks, improving overall productivity.

Safety:

Reduces the risk of injuries associated with manual handling of concrete.

Remote control operation keeps workers at a safe distance.



Applications

High-Rise Construction:

Pumping concrete to elevated floors where crane usage is impractical.

Infrastructure Projects:

Suitable for bridges, tunnels, and other large-scale infrastructure developments.

Residential and Commercial Buildings:

Efficiently places concrete for foundations, slabs, and other structural elements.

Specialized Projects:

Can be used for complex architectural designs requiring precise concrete placement.



Conclusion

Trucked concrete pumps are a vital tool in modern construction, offering unmatched efficiency, precision, and versatility. They significantly enhance productivity, reduce labor costs, and ensure high-quality concrete placement across a wide range of projects. Whether for towering skyscrapers or intricate infrastructure developments, these pumps play a crucial role in meeting the demands of contemporary construction.
