Trailer Shotcrete Spraying Equipment
Trailer Shotcrete Spraying Equipment integrates the functions of pumping and spraying.It is designed and manufactured by international standards.It has stable performance,simple operation,high working efficiency,low rebound rate and high construction quality.It can be widely used Spraying of concrete and bolt shotcrete support during the construction of various wells,tunnels and culverts in the fields of national defense,metallurgy,railway,highway,water conservancy and hydropower and air defense.
Product advantage:
1. Simple structure and strong adaptability.
2. The pumping pressure is high and the conveying distance is long.
3. Large displacement and high comprehensive efficiency.
4. The sprayed concrete has high performance, compactness, uniformity and with high strength.
5. Key pieces of international brand-name guarantee equipment high reliability.
Product parameter(specification):
| PRODUCT DETAIL | ||||||||
| TECHNICAL PARAMETERS | MODEL: SRHTP25-10-45S/A6 | |||||||
| Jet type | Double jet | |||||||
| Max theoretic output | 25m³/h | |||||||
| Max theoretic pumping pressure | 10Mpa | |||||||
| Hydraulic system | Double pump & double circuit opening | |||||||
| Main oil pump displacement | 112ml/r(kawasaki) | |||||||
| Hydraulic system pressure | 26MPa | |||||||
| Power supply | Electric motor | |||||||
| Voltage | 380V | |||||||
| Engine power | 45KW | |||||||
| Distribution valve type | S pipe valve | |||||||
| conveying cylinder bore/stroke | Ф160/1000mm | |||||||
| Accelerator pump diplacement &pressure | 270l/h×Mpa | |||||||
| Max aggregate size | ≤16mm | |||||||
| Mix Hopper Volume | 300-500L | |||||||
| Feeding height | 1350mm | |||||||
| Max theoretic delivery vertical distance | 25m | |||||||
| Max theoretic delivery horizontal distance | 35m | |||||||
| Operation style | wired or wireless remote control | |||||||
| The radiator cooling type | Air cooling system | |||||||
| Hydraulic pump type | Ram pump | |||||||
| Outer dimensions(L*W*H) | 4700×1850×1900mm | |||||||
| Total weight | 3600 kg | |||||||
Product application:

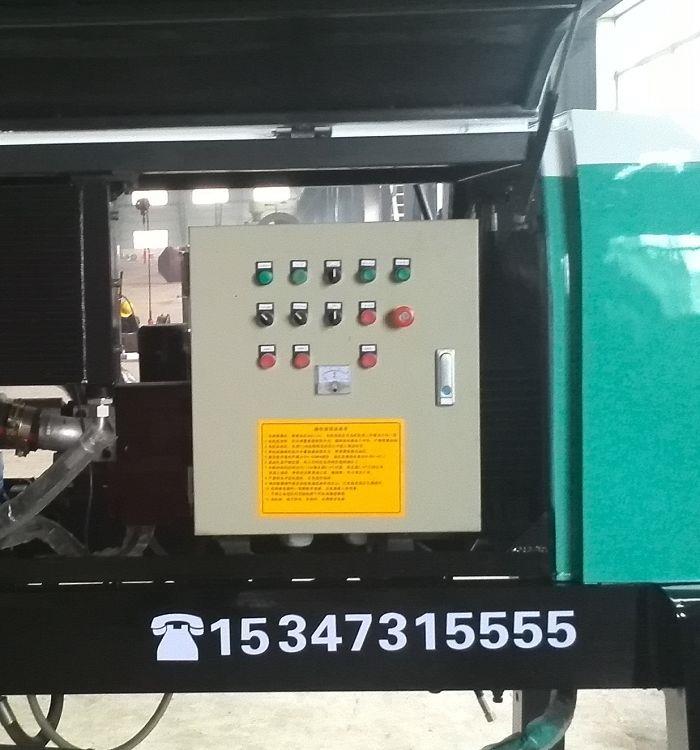

Product details:
Deliver,shipping:
Packaging details---nude package,container or roro,or as your request
Port---changsha
Our service:
Warranty-Saner grants our clients a twelve-month-period(1 year) or 2000-hours warranty for any machine purchased from us.during the warranty period,in case the defect of material or workmanship has occurred with spare parts in normal operation,the defective part will be repaired or replaced free of charge as compensation,at our discretion.
FAQ:
Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry/damp mixture, or ready mixed wet mixture
- Capacity: 10m³/h,20m³/h,30m³/h,40m³/h
- Delivery distance(horizontally/vertically)
- Driven type: electric motor, diesel engine
Q: I plan to put our label to your product ,is it possible ?
A: Of course , it is ok, OEM and ODM is available for us, pls send your logo, brand name and other info. to us , then we'll produce them per your requires.
