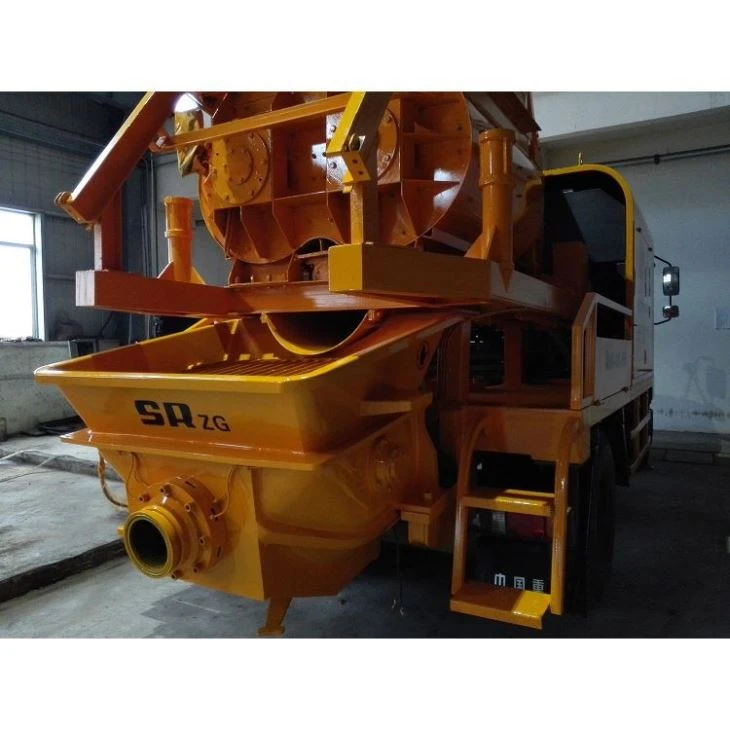

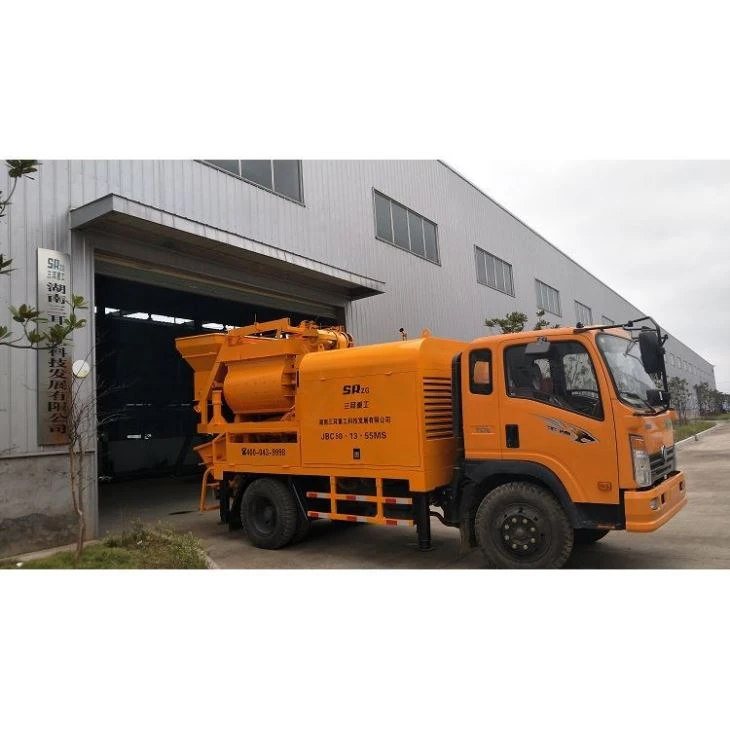

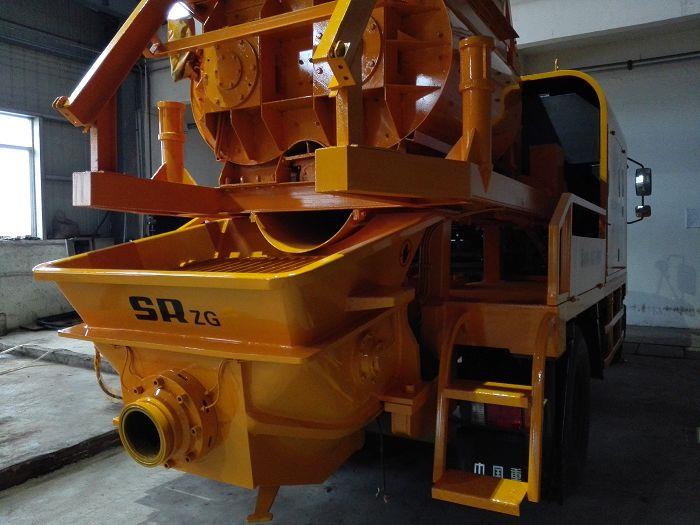

Cement Mixer And Pump Truck combines concrete mixing and pumping in one machine for continuous on-site concrete delivery. Suitable for conventional concrete with aggregates up to 40 mm, it offers efficient material handling for residential, commercial, road, bridge, and foundation construction projects.









TECHNICAL PARAMETERS					MODEL: JBC40-10
Pumping System
Max theoretic output					40m³/h
Max theoretic pumping pressure					10Mpa
Hydraulic system					Double pump & Double circuit opening
Main oil pump displacement					112ml/r(kawasaki)

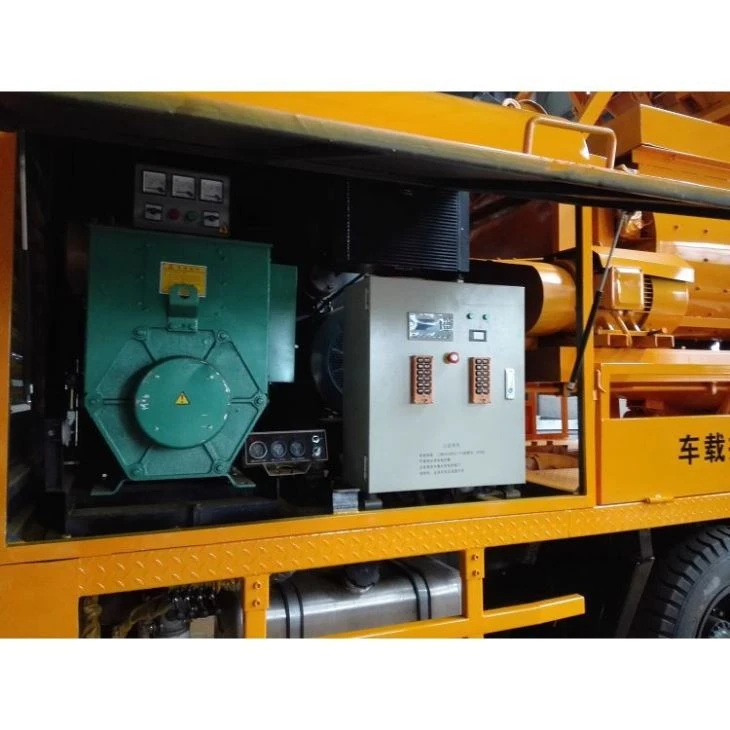

Power supply					Electric engine+Diesel engine
Voltage					380V		/
Engine power					37KW+18.5KW		130KW
Distribution valve type					S pipe valve
conveying cylinder bore/stroke					Ф200/1100mm
Max aggregate size					40mm
Mix Hopper Volume					500L
Pump Hopper Volume					800L
Feeding height					≤1450mm
Max theoretic delivery vertical distance					80m
Max theoretic delivery horizontal distance					300m
The radiator cooling type					Air cooling system
Hydraulic pump type					Ram pump
Concrete slump					130-240mm
Chassis Parameters
Chassis manufacturer					DongFeng
Engine model					WeiCai
Fuel type					Diesel
Emission standard					National Ⅲ
Rated power					120KW
Rated speed					60KM/H
Whole Machine
Outer dimensions(L*W*H)					7220×2200×3550mm
Total weight					13100kg







• Integrated mixing and pumping system reduces equipment transfers and improves on-site construction efficiency.
• Double-pump, double-circuit hydraulic system provides stable pumping performance and simplifies hydraulic control.
• S pipe distribution valve delivers reliable concrete flow with reduced blockage risk during continuous operation.
• Dual power options (electric motor or diesel engine) allow flexible operation under different jobsite conditions.
• High pumping capacity of up to 40 m³/h supports medium and large-scale concrete placement with consistent output.







Residential Construction – Pumps concrete efficiently for house foundations, slabs, columns, and floor casting.

Commercial Buildings – Supports continuous concrete placement for multi-story structures and reinforced concrete frames.

Road Construction – Delivers concrete for pavement, sidewalks, drainage channels, and municipal infrastructure.

Bridge Engineering – Pumps concrete for bridge decks, piers, abutments, and retaining structures.

Industrial Facilities – Suitable for factory foundations, warehouses, workshops, and heavy-duty concrete flooring.

Rural & Infrastructure Projects – Ideal for irrigation channels, village roads, small bridges, and public utility construction.





Product details:





Product work video:









Customization Category	Available Options
Machine Configuration	Pumping capacity, engine brand, electric or diesel power, hydraulic components, chassis brand, boom or pipeline configuration
Appearance	Custom paint color, company logo, decals, safety labels, model identification plates
Accessories	Delivery pipelines, reducers, elbows, clamps, end hoses, remote controller, lubrication system, spare parts kit, tool box







1. Raw material inspection for structural steel, hydraulic components, and power systems
2. CNC cutting and precision machining of structural parts
3. Robotic welding of chassis, hopper, and pumping assemblies
4. Heat treatment of critical wear components
5. Hydraulic system assembly and pressure testing
6. Mixing drum and pumping system integration
7. Electrical wiring and control system verification
8. Concrete pumping performance test under load
9. Leakage inspection of hydraulic and pipeline systems
10. Dimensional inspection and final assembly verification
11. Surface treatment with shot blasting and anti-corrosion coating
12. Final factory inspection, operational testing, and shipment approval





Spare Parts Supply – Wear parts, hydraulic components, seals, pipelines, valves, electrical parts, and maintenance kits available.

Technical Support – Remote troubleshooting via email, phone, video call, and online technical consultation.

Installation Assistance – Machine commissioning guidance and operating instructions provided.

Operator Training – Operation, daily inspection, maintenance, and troubleshooting guidance.

Warranty Service – Standard 12-month warranty covering manufacturing defects under normal operating conditions.

Documentation Support – Parts manuals, maintenance schedules, wiring diagrams, and service documents supplied.

Export Assistance – Packing documents, customs documentation, and shipping coordination for international orders.



















Standard payment terms are 30% T/T deposit and 70% balance before shipment. L/C at sight, Western Union, and Trade Assurance may also be accepted upon agreement.
