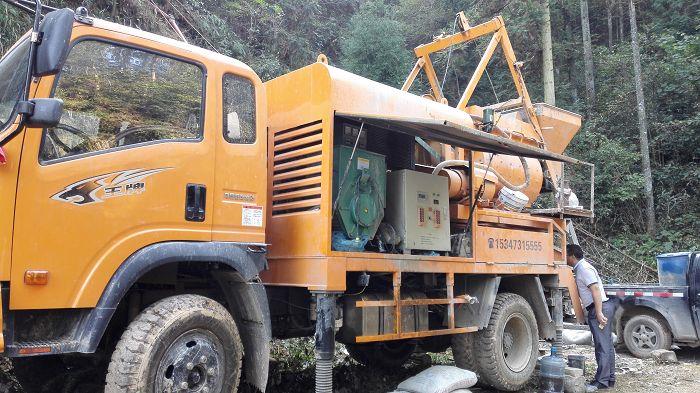

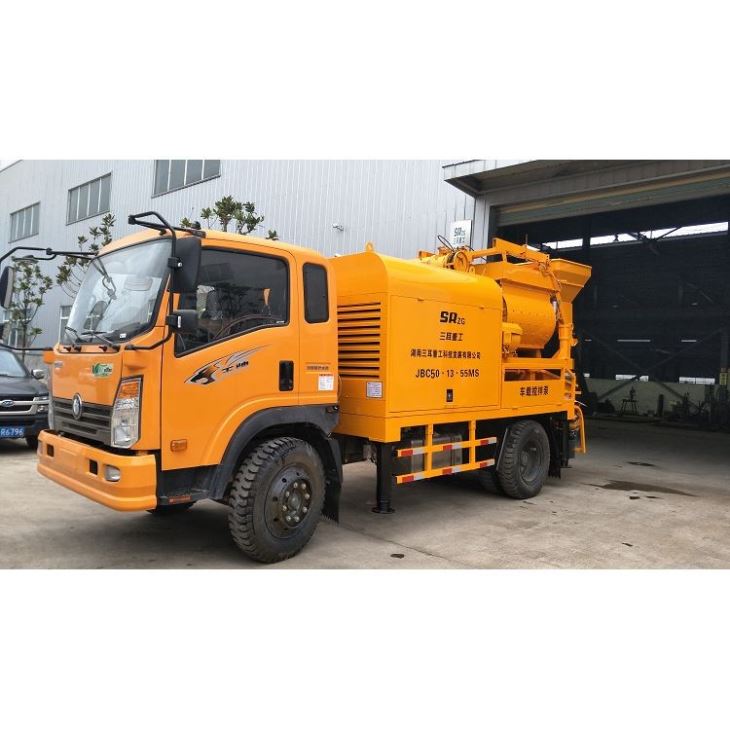

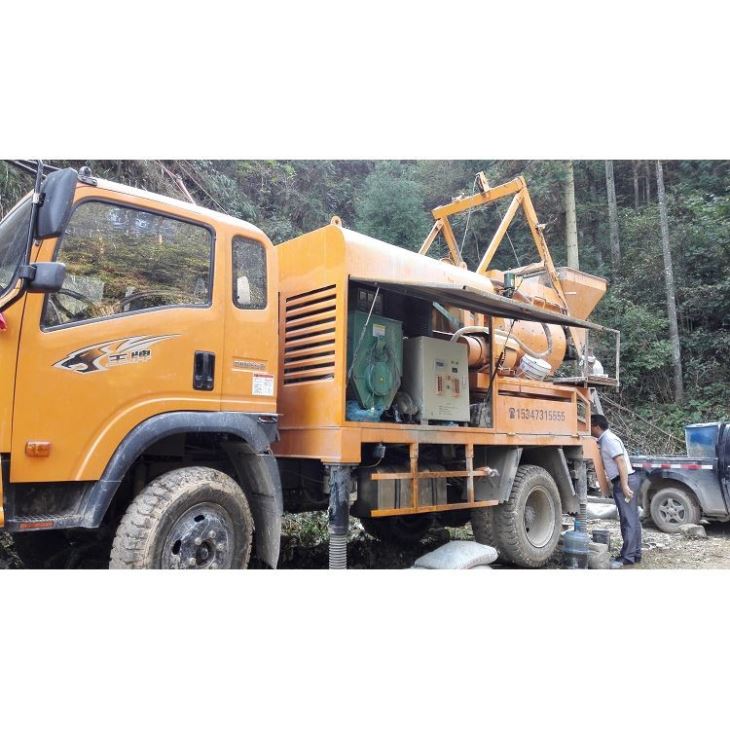

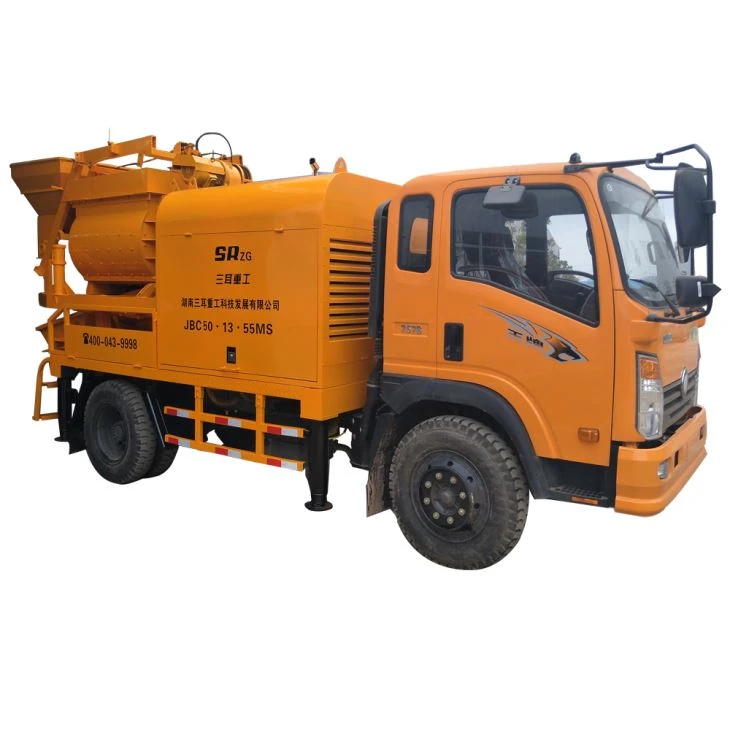

Mortar Mixer And Pump Truck



The Mortar Mixer And Pump Truck is an integrated construction machine that combines mortar mixing and hydraulic pumping in one mobile unit. It provides efficient mortar preparation, transportation, and delivery for tunnel construction, underground engineering, masonry, and large-scale building projects.





Tunnel Construction: Utilized extensively for tunnel lining, underground support structures, long-distance mortar conveyance, and preparatory spraying material supply.

Building Construction: Ideal for large-scale wall plastering, commercial masonry mortar delivery, and multi-story residential building projects.

Mining and Underground Engineering: Essential for underground void filling, mine reinforcement support, and remote subterranean material distribution.





Material Feeding: Dry or semi-wet ingredients are fed directly into the 500-liter mix hopper.

Mortar Mixing: Materials are rapidly homogenized within the optimized mixing drum to ensure uniform consistency.

Hydraulic Pumping: Mixed mortar is transferred into the 800-liter pump hopper and driven by a ram pump system through an S-pipe distribution valve.

Pipeline Transportation: High-pressure hydraulic action pushes the material smoothly through steel or rubber delivery lines.

Construction Application: Mortar is continuously discharged at the work face for spraying, pouring, or plastering.





TECHNICAL PARAMETERS					MODEL: JBC40-10
Pumping System
Max theoretic output					40m³/h
Max theoretic pumping pressure					10Mpa

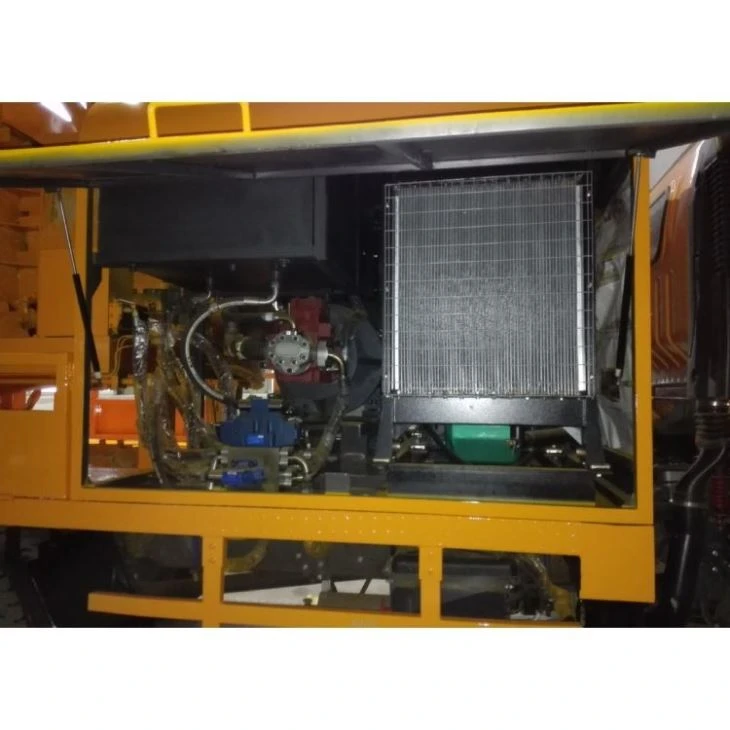

Hydraulic system					Double pump & Double circuit opening
Main oil pump displacement					112ml/r(kawasaki)
Power supply					Electric engine+Diesel engine
Voltage					380V		/
Engine power					37KW+18.5KW		130KW
Distribution valve type					S pipe valve
conveying cylinder bore/stroke					Ф200/1100mm
Max aggregate size					40mm
Mix Hopper Volume					500L
Pump Hopper Volume					800L
Feeding height					≤1450mm
Max theoretic delivery vertical distance					80m
Max theoretic delivery horizontal distance					300m

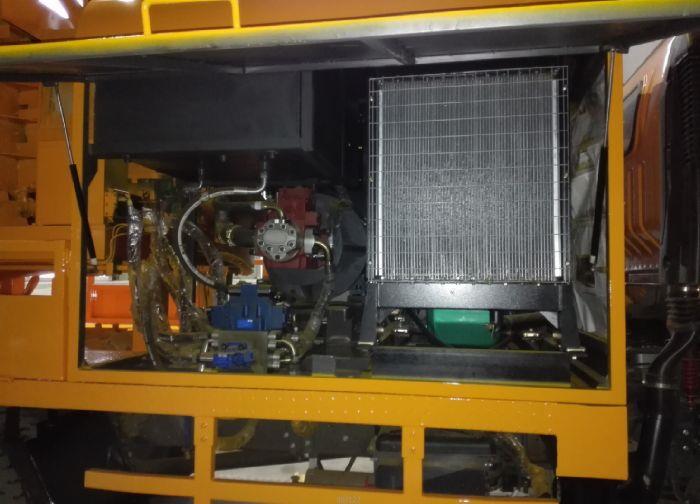

The radiator cooling type					Air cooling system
Hydraulic pump type					Ram pump
Concrete slump					130-240mm
Chassis Parameters
Chassis manufacturer					DongFeng
Engine model					WeiCai
Fuel type					Diesel
Emission standard					National Ⅲ
Rated power					120KW
Rated speed					60KM/H
Whole Machine
Outer dimensions(L*W*H)					7220×2200×3550mm
Total weight					13100kg











Product work video:







Extended Reach: Capable of pushing mortar horizontally up to 300 meters and vertically up to 80 meters.

Consistent Output: Stable 40 cubic meters per hour flow rate reduces project completion timelines.

High Aggregate Tolerance: Efficiently handles fine aggregates up to 40mm without surging or pipeline blockages.

Adaptive Power: Seamless transition capabilities between electric and diesel operation depending on site utility availability.





Management Standards: ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety).

Safety Compliance: Fully compliant with CE Machinery Directive 2006/42/EC, EN ISO 12100 (Safety of Machinery), and EN 60204-1 (Electrical Equipment of Machinery).

Industrial Standards: Conforms to ISO 3834 welding requirements and EN 10204 material inspection documentation guidelines.





Q: What is the minimum order quantity (MOQ) for international procurement?

A: The standard minimum order quantity is 1 unit, with flexible volume pricing available for fleet buyers and regional distributors.



Q: What are the available payment terms for overseas buyers?

A: We accept secure international transaction terms including Letter of Credit (L/C) at sight and Telegraphic Transfer (T/T) with structured deposit arrangements.



Q: What is the typical lead time from order confirmation to port delivery?

A: Standard manufacturing and factory dispatch take between 15 to 30 days depending on custom configuration requirements and factory queue status.



Q: Do you offer OEM or private labeling options for global dealers?

A: Yes, customized color schemes, branded body decals, and localized control panel layouts are fully supported for qualified partner distributors.



Q: What warranty coverage is included with the equipment purchase?

A: A comprehensive 12-month or 2,000-operating-hour factory warranty covering major core structural and hydraulic components is standard.



Q: How are replacement wear parts packaged and shipped internationally?

A: Vulnerable components are securely crated in waterproof, export-standard plywood boxes and shipped via air or ocean freight based on urgency.



Q: Can local technicians be trained at your manufacturing facility?

A: Yes, we provide free hands-on technical training sessions at our 50,000-square-meter Hunan factory for client operation and maintenance teams.



Q: Are third-party inspection agencies accepted prior to shipment?

A: We fully cooperate with internationally recognized inspection bodies such as SGS, BV, and TUV designated by the buyer.



Q: What customs documentation is provided with the export shipment?

A: A full suite of export papers including the Commercial Invoice, Packing List, Bill of Lading.
