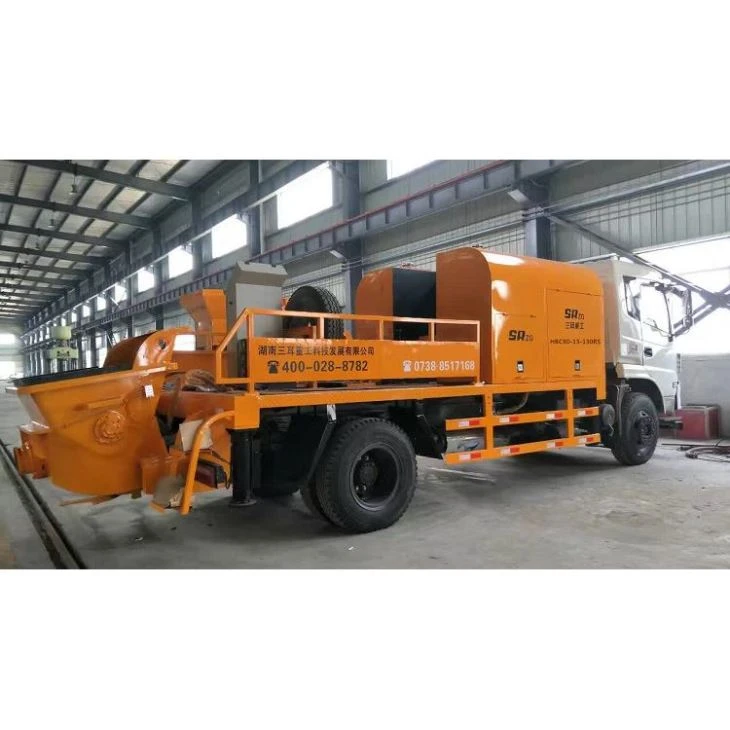

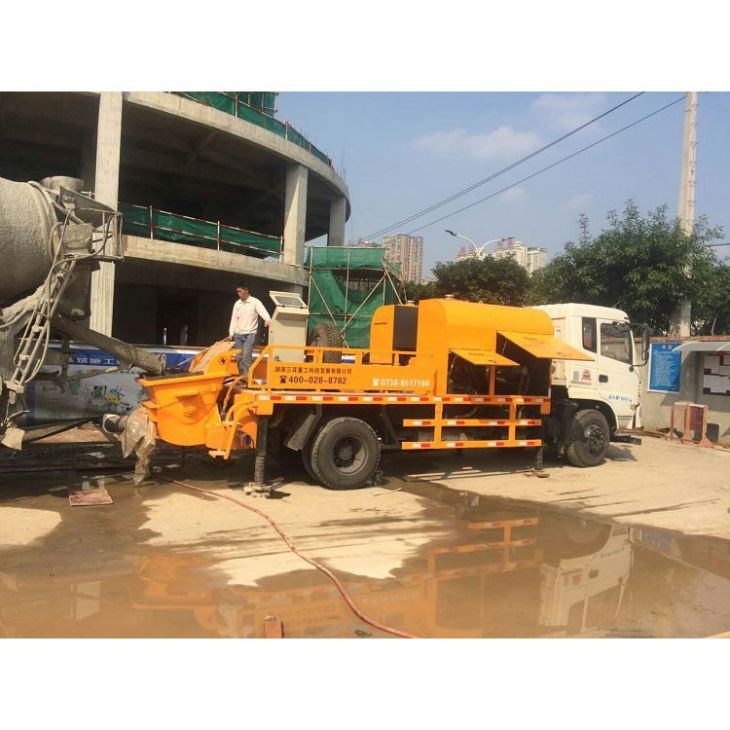

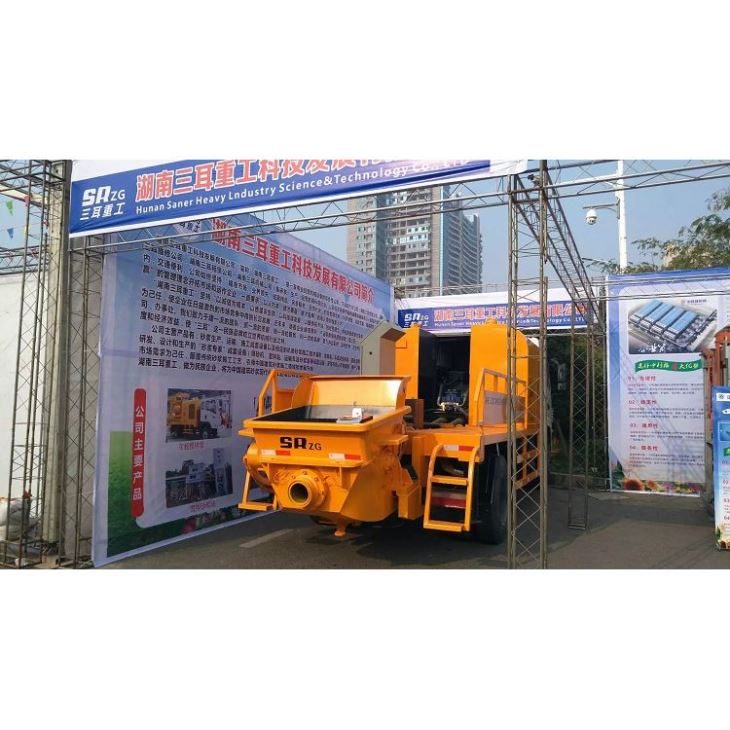

Truck Mounted Concrete Line Pump
Truck Mounted Concrete Line Pump is a mobile concrete pumping solution designed for transporting ready-mix concrete with up to 40 mm aggregate size. It combines high pumping efficiency, flexible mobility, and stable hydraulic performance for residential, commercial, industrial, and infrastructure concrete placement projects.
Product specifications
| TECHNICAL PARAMETERS | MODEL: HBC60-13-75S | |||||||
| Pumping System | ||||||||
| Max theoretic output | 64m³/h | |||||||
| Max theoretic pumping pressure | 12Mpa | |||||||
| Hydraulic system | Double pump & Double circuit opening | |||||||
| Main oil pump displacement | 190ml/r(kawasaki) | |||||||
| Hydraulic system pressure | 32MPa | |||||||
| Power supply | Electric engine | Diesel engine | ||||||
| Voltage | 380V | / | ||||||
| Engine power | 75KW | |||||||
| Distribution valve type | S pipe valve | |||||||
| conveying cylinder bore/stroke | Ф230/1565mm | |||||||
| Max aggregate size | 40mm | |||||||
| Mix Hopper Volume | 800L | |||||||
| Feeding height | ≤1450mm | |||||||
| Max theoretic delivery vertical distance | 115m | |||||||
| Max theoretic delivery horizontal distance | 300m | |||||||
| The radiator cooling type | Air cooling system | |||||||
| Hydraulic pump type | Ram pump | |||||||
| Concrete slump | 160-230mm | |||||||
| Chassis Parameters | ||||||||
| Chassis manufacturer | DongFeng/Foton | |||||||
| Engine model | YuCai | |||||||
| Fuel type | Diesel | |||||||
| Emission standard | National V | |||||||
| Tyre specification | 7.00R16 | |||||||
| Tyre distance (front/back) | 1584/1540MM | |||||||
| Wheelbase | 3360 | |||||||
| Axle weight | 2.64T/4.72T | |||||||
| Axle quantity | 2 | |||||||
| Rated power | 66.2KW | |||||||
| Rated speed | 60KM/H | |||||||
| Gradient | 15° | |||||||
| Turnning Radius | 7M | |||||||
| Whole Machine | ||||||||
| Outer dimensions(L*W*H) | 7500×2150×2400mm | |||||||
| Total weight | 7700kg | |||||||
Key Features
- 64 m³/h theoretical output enables efficient concrete placement and improves jobsite productivity.
- Double-pump, double-circuit hydraulic system provides stable operation and reduces hydraulic interference during pumping.
- S pipe distribution valve delivers reliable concrete switching with excellent wear resistance and reduced maintenance.
- Truck-mounted chassis design allows fast relocation between construction sites, reducing transportation and setup time.
Typical Applications
Residential Construction – Pumps concrete for house foundations, slabs, columns, and multi-story residential buildings.
Commercial Buildings – Supports efficient concrete placement for offices, shopping centers, warehouses, and public facilities.
Road & Bridge Construction – Delivers concrete for bridge decks, retaining walls, road structures, and municipal engineering.
Industrial Projects – Suitable for factory floors, equipment foundations, storage facilities, and infrastructure expansion.
Rural & Remote Construction – Provides mobile concrete pumping where fixed pumping equipment is impractical.
Product details:
OEM & Customization
|
Customization Category |
Available Options |
|
Machine Configuration |
Electric or diesel power, pumping capacity, pumping pressure, hydraulic system configuration, chassis brand (DongFeng, Foton or equivalent), boom pipeline length |
|
Control System |
PLC control, wireless remote control, operation panel language, intelligent monitoring system |
|
Appearance |
Custom paint color, company logo, decals, warning labels, branding stickers |
|
Hopper & Pipeline |
Hopper capacity, pipeline diameter, wear-resistant pipe materials, pipe layout |
|
Accessories |
Delivery hoses, pipeline clamps, reducers, cleaning balls, lubrication system, tool kit, spare parts package |
|
Electrical Configuration |
Voltage customization (380V, 415V, 440V, 50Hz/60Hz where applicable) |
|
Documentation |
Customized nameplate, operator manual, spare parts catalog, maintenance manual, export documentation |
Manufacturing & Quality Assurance
- Raw material inspection and component verification
- CNC machining of hydraulic and mechanical components
- Chassis preparation and structural welding
- Robotic welding of hopper and pipeline assemblies
- Hydraulic system assembly and pressure testing
- Pumping system installation and alignment
- Electrical wiring and control system integration
- Complete machine assembly
- Hydraulic leakage inspection
- Pumping pressure performance test
- Concrete simulation pumping test
- Road driving and braking inspection
- Final dimensional inspection
- Surface treatment and powder coating/painting
- Factory acceptance test (FAT) before shipment
After-sales Support
- Spare parts supply for hydraulic components, S pipe valves, wear plates, delivery cylinders, seals, pipelines, and electrical parts.
- Technical support via email, phone, WhatsApp, or video conference.
- Operation, maintenance, and troubleshooting manuals provided with each machine.
- Online operator and maintenance training before or after delivery.
- Warranty covering major structural and hydraulic components according to contract terms.
- Export documentation support, including packing list, commercial invoice, and shipping documents.
