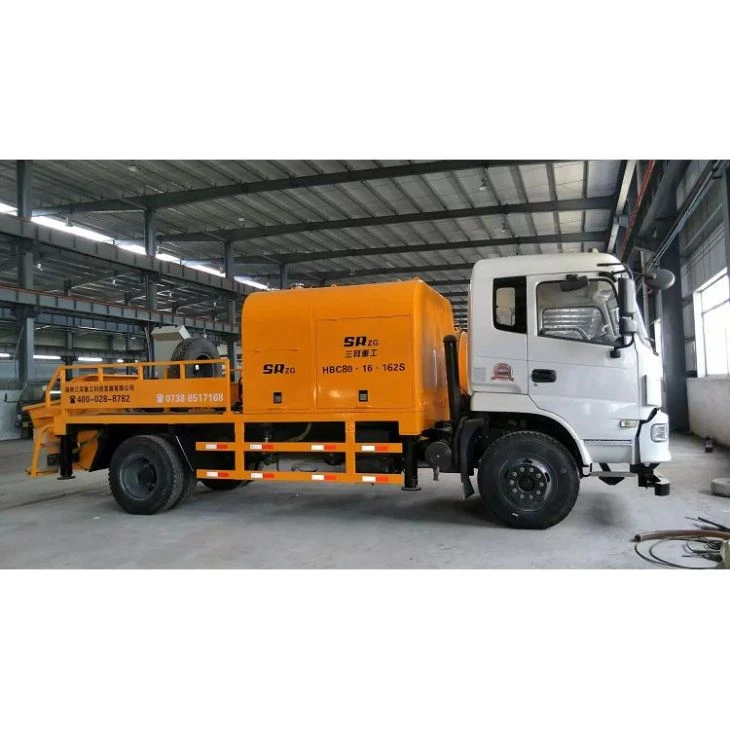

Largest Concrete Pump For Building Construction
Largest Concrete Pump for Building Construction is a high-capacity concrete pumping machine designed to deliver large volumes of concrete efficiently for high-rise buildings and large-scale construction projects.
Main Components
Kawasaki hydraulic main pump
High-strength hydraulic cylinders (Φ 140 × 1800 mm)
Heavy-duty S pipe valve
Wear-resistant delivery cylinders (Φ 200 × 1800 mm)
Air-cooled hydraulic cooling system
High-capacity hydraulic oil tank (420 L)
Durable steel hopper (0.86 m³, feeding height: 1450 mm)
Reliable diesel power system (130 kW engine power)
Technical Specifications
Pumping Specifications
| Parameter | Specification |
|---|---|
| Max. Theoretical Output | 87 m³/h |
| Max. Concrete Pumping Pressure | 13 MPa |
| High / Low Pressure Switching | Yes |
| Hydraulic System | Double Pump & Double Circuit |
| Main Hydraulic Pump | Kawasaki, 260 ml/r |
| Hydraulic Pressure | 32 MPa |
| Power Source | Diesel Engine |
| Engine Power | 130 kW |
| Distribution Valve | S Pipe Valve |
| Concrete Cylinder | Φ 200 × 1800 mm |
| Oil Cylinder | Φ 140 × 1800 mm |
| Maximum Aggregate Size | 40 mm |
| Hopper Capacity | 0.86 m³ |
| Feeding Height | 1450 mm |
| Maximum Vertical Delivery | 120 m |
| Maximum Horizontal Delivery | 360 m |
| Suitable Concrete Slump | 160–230 mm |
| Hydraulic Oil Tank Capacity | 420 L |
| Cooling System | Air Cooling |
Chassis Specifications
| Parameter | Specification |
|---|---|
| Chassis Manufacturer | Dongfeng / Foton |
| Engine Brand | Yuchai |
| Fuel Type | Diesel |
| Emission Standard | China National V (Euro VI / EPA optional) |
| Tire Size | 7.00R16 |
| Wheel Track (Front / Rear) | 1584 / 1540 mm |
| Wheelbase | 3360 mm |
| Axle Load | 2.64 t / 4.72 t |
| Number of Axles | 2 |
| Rated Power | 66.2 kW |
| Maximum Travel Speed | 60 km/h |
| Maximum Gradeability | 15° |
| Minimum Turning Radius | 7 m |
Machine Dimensions & Weight
| Parameter | Specification |
|---|---|
| Overall Dimensions (L × W × H) | 7500 × 2150 × 2400 mm |
| Total Weight | 7700 kg |
Quality Inspection and Testing
Hydraulic circuit pressure testing under simulated load conditions
Full electrical system diagnostics and sensor calibration
Concrete pumping simulation testing to verify output volume and pressure stability
Non-destructive testing (NDT) on critical structural welds
Final visual and dimensional conformity inspection before Factory Acceptance Testing (FAT) sign-off
Certifications
CE Certification (TÜV)
ISO 9001:2015 Quality Management System Certification
AWS D1.1 Structural Welding Standard Compliance
EN 5817 Weld Quality Standard Compliance
Optional Euro VI / EPA Emission Compliant Power Systems
After-Sales Service and Technical Support
Installation & Commissioning: Experienced overseas service engineers are available to travel directly to your jobsite for installation support and operational commissioning.
Operator Training: Comprehensive on-site or virtual training programs covering machine operation, daily upkeep, and safety protocols.
Spare Parts Support: A complete inventory of high-wear parts-including S valves, delivery cylinders, hydraulic seals, and delivery pipelines-is maintained for rapid global dispatch.
Remote Technical Support: 24/7 technical assistance channels offering remote troubleshooting and long-term maintenance consulting.
FAQ
Q: What is the minimum order quantity (MOQ) for international procurement?
A: The minimum order quantity is one single unit, allowing flexibility for individual project contractors and large fleet buyers alike.
Q: What are the standard payment terms accepted for global orders?
A: We accept standard international commercial payment terms including T/T (Telegraphic Transfer) and irrevocable Letter of Credit (L/C) at sight.
Q: What is the average manufacturing and delivery lead time after order confirmation?
A: Standard units are typically ready for shipment within 15 to 25 working days depending on custom configuration requirements and factory production schedules.
Q: Are wear parts universally standard or proprietary to Saner equipment?
A: Most high-wear components like wear plates, cutting rings, and piston seals adhere to universal industry dimensions for effortless local sourcing.
Q: Does Saner provide on-site technician deployment for overseas commissioning?
A: Yes, certified mechanical and hydraulic engineers are available for dispatch worldwide to assist with professional on-site setup and personnel training.
Q: What warranty coverage is included with the purchase of a new pump?
A: Every machine comes with a comprehensive 12-month or 2,000-operating-hour factory warranty covering core structural and hydraulic assembly defects.
Q: Can the equipment color and corporate branding be customized for fleet owners?
A: Yes, OEM and custom color branding options are fully supported for bulk orders and corporate construction fleets upon request.
Q: How does the double-circuit hydraulic system protect against sudden component failure?
A: Independent pump circuits isolate main functions so that auxiliary backup pressure maintains operational stability even if a single circuit experiences a localized fault.
Q: What specific preventive maintenance schedule is recommended for the Kawasaki main pump?
A: Routine hydraulic oil and filter replacements every 500 operating hours ensure optimal viscosity and prevent premature wear of internal swashplate components.
Q: How are replacement spare parts cataloged and ordered internationally?
A: Clients receive a detailed digital parts manual with serial-specific component diagrams, enabling fast identification and direct dispatch via express air freight.
