Ground Line Concrete Pumps

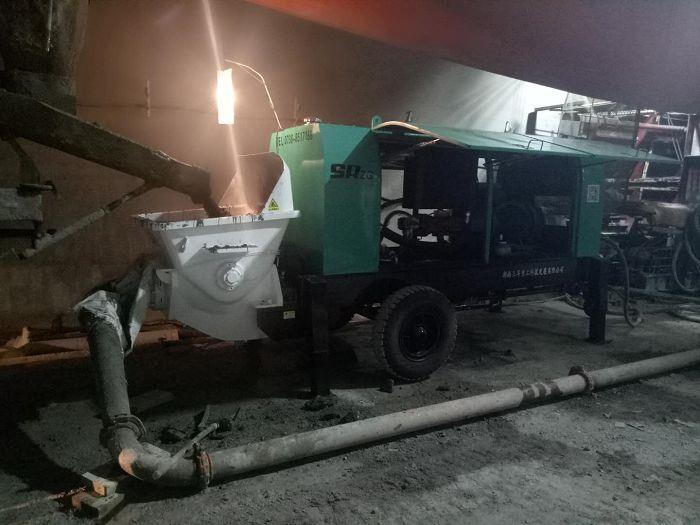

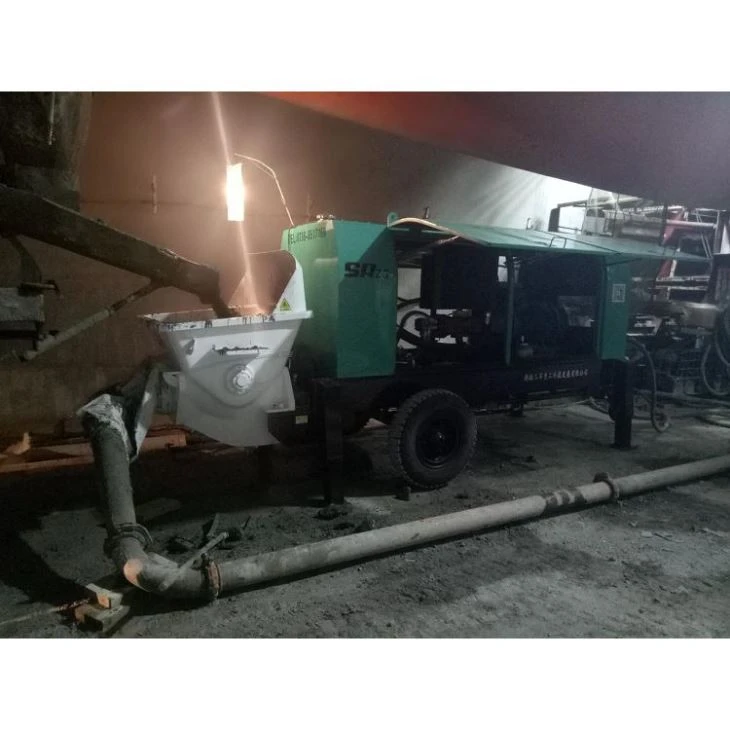

SANER Ground Line Concrete Pumps are trailer-mounted pumping systems designed for reliable long-distance concrete delivery. They are widely used in tunnels, high-rise buildings, mining, bridges, hydropower, and infrastructure projects.
Why Choose SANER Ground Line Concrete Pumps
High Pumping Efficiency: Delivers continuous concrete output up to 80 m³/h to keep fast-paced construction schedules on track.
Exceptional Reach: Capable of long-distance transport up to 500 m horizontally and 150 m vertically.
Reliable Hydraulic Architecture: Features an advanced double-pump, double-circuit hydraulic system ensuring stable performance and minimal downtime.
Working Principle
The SANER Ground Line Concrete Pump operates on a hydraulic twin-cylinder piston design. During operation, the main hydraulic cylinders drive the concrete pistons in a reciprocating motion.
Intake Stroke: As one piston retracts, it draws concrete from the hopper into the concrete cylinder via suction.
Discharge Stroke: Simultaneously, the other piston advances, pushing concrete out of its cylinder and through the S-valve into the pipeline system.
Valve Switching: The S-valve swiftly oscillates to alternate connection between the two cylinders and the delivery pipe, ensuring a seamless, continuous flow of concrete under high pressure.
Product parameter
| MODEL: HBT80-16-110S/162RS | |||||
| Max theoretic output | 80m³/h | ||||
| Max concrete pumping pressure | 16Mpa | ||||
| High and low valtage switchover | Yes | ||||
| Hydraulic system | Double pump & double circuit opening | ||||
| Main oil pump discharge | 260ml/r(kawasaki) | ||||
| Hydraulic system pressure | 32MPa | ||||
| Power supply | Electric motor | Diesel motor | |||
| Voltage | 380V | / | |||
| Motor power | 110KW | 162KW | |||
| Motor speed | 1475r/min | ||||
| Distribution valve type | S pipe valve | ||||
| Concrete conveying cylinder bore/stroke | Ф200/1862mm | ||||
| Oil cylinder bore/stroke | Ф140/1650mm | ||||
| Max aggregate size | 40mm | ||||
| Hopper Volume | 0.80m³ | ||||
| Feeding height | 1450mm | ||||
| Max delivery vertical distance | 150m | ||||
| Max delivery horizontal distance | 500m | ||||
| Concrete slump | 160-230mm | ||||
| Hydraulic oil tank volume | 420L | ||||
| The radiator cooling type | Air cooling system | ||||
| Hydraulic pump type | Ram pump | ||||
| Outer dimensions(L*W*H) | 6450*1900*2330mm | ||||
| Total weight | 6100kg | ||||
Certifications
CE Certified by TÜV
ISO 9001:2015 Quality Management System Compliance
High-Pressure Pipeline Pressure Testing Reports
Optional EPA and Euro VI Engine Compliance Documentation
Packaging & Delivery
Corrosion Protection: Critical exposed metallic surfaces are treated with anti-rust coatings and sealed in moisture-barrier wrapping.
Secure Seaworthy Crating: Smaller components, spare parts, and accessories are packed in robust, fumigation-free wooden export boxes.
Container Loading: Main machine frames are securely anchored and braced inside standard 20ft or 40ft high-cube shipping containers or flat-rack containers, ensuring maximum protection during ocean and land transit.
FAQ
Q: What is the minimum order quantity for international procurement?
A: The minimum order quantity is one single unit, supporting both standalone purchases and large fleet orders.
Q: What are the acceptable payment terms for global buyers?
A: We accept flexible payment options including T/T wire transfer and L/C at sight, subject to contract finalization.
Q: What is the typical lead time from order confirmation to shipment?
A: Standard production and factory testing take between 15 to 25 working days depending on customization requirements.
Q: Are wear parts universally standard or proprietary to SANER?
A: Core wear parts such as cutting rings and spectacle plates are designed to international industrial dimensions for easy global sourcing.
Q: Can the pump handle lightweight aggregate or high-slump concrete mixes?
A: The system easily accommodates concrete slumps between 160 to 230 mm and handles various specialized mix designs.
Q: Does SANER provide on-site commissioning services for overseas projects?
A: Yes, we can dispatch experienced mechanical engineers directly to your job site for installation supervision and staff training.
Q: How are fragile hydraulic components protected during ocean freight?
A: All hydraulic valves, pumps, and electrical cabinets are sealed with heavy-duty damp-proof materials and shock-absorbing braces.
Q: What documentation is provided with each machine export?
A: Each shipment includes complete English operation manuals, electrical schematics, hydraulic diagrams, and factory inspection certificates.
Q: Is third-party inspection accepted prior to factory dispatch?
A: We fully welcome inspection agencies such as SGS, BV, or TÜV to conduct pre-shipment verification at our manufacturing plant.
Q: How can operators acquire technical support for troubleshooting on site?
A: Our multilingual after-sales engineering team provides 24/7 online video assistance and rapid remote diagnostic services.
