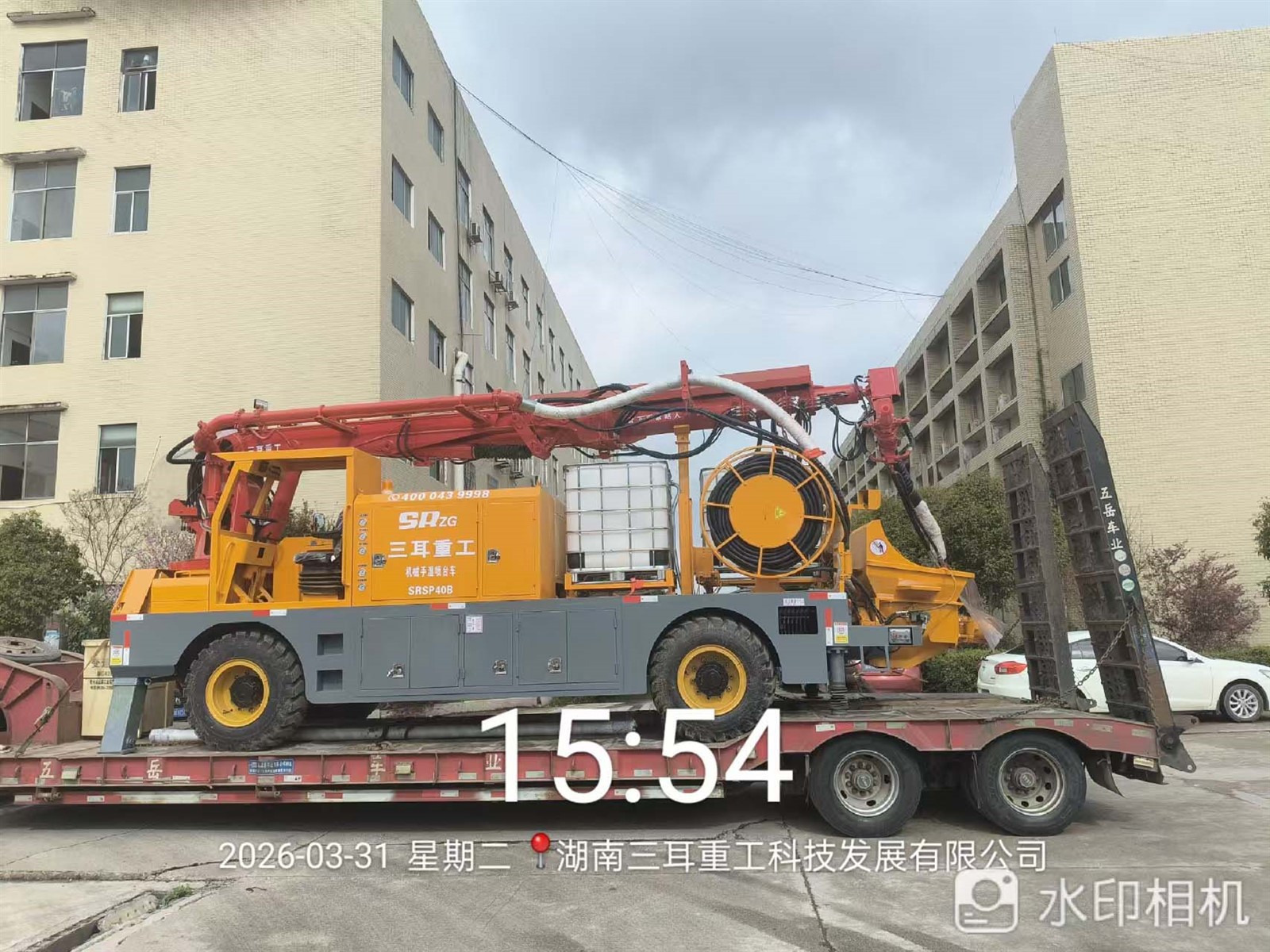

Based on the search results, here are the key specifications for 40 m³/h wet shotcrete machines:
📊 Core Technical Specifications
| Parameter | Typical Value/Details |
|---|---|
| Theoretical Spraying Capacity | 40 m³/h |
| Maximum Aggregate Size | 15–25 mm (typically ≤25 mm) |
| Spraying Reach (Height) | 15–16 meters |
| Spraying Reach (Width) | 24–26 meters |
| Total Machine Weight | 17–20.5 tons |
| Chassis | Special engineering chassis, 4-wheel drive |
| Power System | Electric main power + diesel emergency |
| Max. Climbing Ability | 20°–29% gradient |
⚙️ Key Features and Advantages
High Work Efficiency: The 40 m³/h capacity significantly accelerates construction processes, effectively shortening project timelines for large tunnels. A user report indicates that upgrading to a 40 m³/h machine improved construction efficiency by more than 50% compared to a worn-out older unit.
Low Rebound Rate: Rebound (material that bounces off and is wasted) can be reduced to 10% or less, greatly reducing material costs.
Consistent Mix Quality: The wet-mix process ensures uniform mixing of water, cement, and aggregates before spraying, resulting in stronger and more durable structures.
High Reliability & Anti-Blocking: Features advanced pumping mechanisms that reduce pulsation, ensuring smooth concrete delivery and preventing pipe blockages.
Remote Control Operation: Most modern units come with wireless remote control systems, allowing operators to work from a safe distance and precisely guide the nozzle.
Reduced Dust Generation: Since water is mixed before pumping, these machines produce significantly less dust than dry shotcrete systems.
🏗️ Typical Applications
A 40 m³/h wet shotcrete machine is suitable for:
Large highway and railway tunnels (initial support operations)
Water conservancy and hydropower tunnels
Mine roadways in metal and non-metal mines
Large-scale slope protection projects
Major underground infrastructure
🚀 Practical Considerations for Your Operation
Air Compressor Matching: A 40 m³/h shotcrete machine typically requires a high-capacity air compressor. Some integrated units come with an onboard compressor (e.g., 15–20 m³/min air flow), which solves the problem of inadequate site air supply.
Concrete Mix Design: Ensure your concrete mix uses aggregates no larger than 25 mm and is formulated for wet-mix pumping.
Space Requirements: These machines have transport dimensions around 7.9–9.5 m (length) × 2.6–2.8 m (width) × 3.3 m (height), and require a minimum tunnel size of approximately 4 meters to operate.
Wet vs. Dry Comparison: Wet shotcrete offers lower dust and better quality control, while dry shotcrete provides more flexibility in adjusting water content on-site.
If you would like more detailed information on a specific model or have questions about integration with your existing tunnel equipment, feel free to ask.
