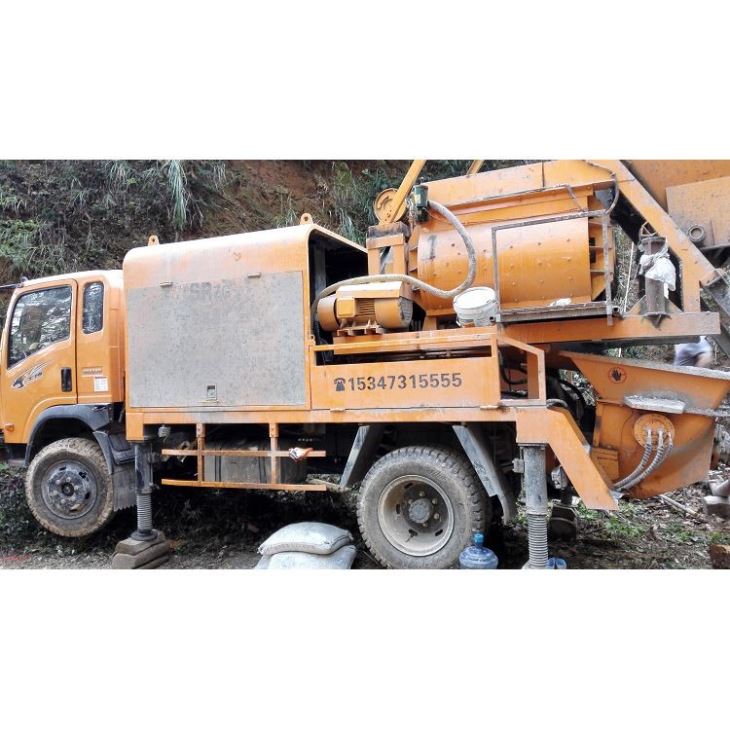

Diesel Concrete Mixer Pump
Diesel Concrete Mixer Pump has a wide application range.It can be used for the transportation of concrete for engineering construction, the transportation of soil for greening, the grouting of foundation piles and the transportation of sludge.according to different mixing system there are drum type mixing pump and forced mixing pump, according to different power system there are electrical mixing pump and diesel mixing pump
Product advantage:
The streamlined design is novel and beautiful with reasonable layout, the structure is compact, and the rigidity of the hood is greatly improved.
Most of the accessories use world famous brands to ensure high reliability of the pump.
The diesel engine adopts a high-end brand with reliable performance and strong power.
The S tube is made of high-alloy steel and is precision-cast. The hopper has the characteristics of large volume and no material accumulation.
The large-diameter, long-stroke main cylinder ensures the highest construction distance and farther distance.
Product parameter(specification):
| TECHNICAL PARAMETERS | MODEL: JBC40-10 | |||||||
| Pumping System | ||||||||
| Max theoretic output | 40m³/h | |||||||
| Max theoretic pumping pressure | 10Mpa | |||||||
| Hydraulic system | Double pump & Double circuit opening | |||||||
| Main oil pump displacement | 112ml/r(kawasaki) | |||||||
| Power supply | Electric engine+Diesel engine | |||||||
| Voltage | 380V | / | ||||||
| Engine power | 37KW+18.5KW | 130KW | ||||||
| Distribution valve type | S pipe valve | |||||||
| conveying cylinder bore/stroke | Ф200/1100mm | |||||||
| Max aggregate size | 40mm | |||||||
| Mix Hopper Volume | 500L | |||||||
| Pump Hopper Volume | 800L | |||||||
| Feeding height | ≤1450mm | |||||||
| Max theoretic delivery vertical distance | 80m | |||||||
| Max theoretic delivery horizontal distance | 300m | |||||||
| The radiator cooling type | Air cooling system | |||||||
| Hydraulic pump type | Ram pump | |||||||
| Concrete slump | 130-240mm | |||||||
| Chassis Parameters | ||||||||
| Chassis manufacturer | DongFeng | |||||||
| Engine model | WeiCai | |||||||
| Fuel type | Diesel | |||||||
| Emission standard | National Ⅲ | |||||||
| Rated power | 120KW | |||||||
| Rated speed | 60KM/H | |||||||
| Whole Machine | ||||||||
| Outer dimensions(L*W*H) | 7220×2200×3550mm | |||||||
| Total weight | 13100kg | |||||||
Product application:
Product details:
Product work video:
Deliver,shipping:
Packaging details---nude package,container or roro,or as your request
Port---changsha
Our service:Diesel Concrete Mixer Pump
The digital commitment system, clear standards of service and payment basis, value chain covering the whole product life and engineers for global service ensure
Warranty: 12months warranty since cargo left factory
We can send technician oversea to supply technician support.
FAQ:Diesel Concrete Mixer Pump
Q:How about the quality of your products?
A:Our machines are manufactured strictly to national and international standards,we take a test on each equipment before delivery.you could also use trade assurance by Alibaba for product quality protection,on-time shipment protection and payment protection.Chinese top brands or world grade brands like Kawasaki oil pumps
Q:Are you manufacturer and what is your Brand?
A:Yes, we are professional manufacturer on concrete machines, and our Brand is "Saner".
